| 西蒙款永磁变频螺杆式空压机参数 | |||||||||||||||||

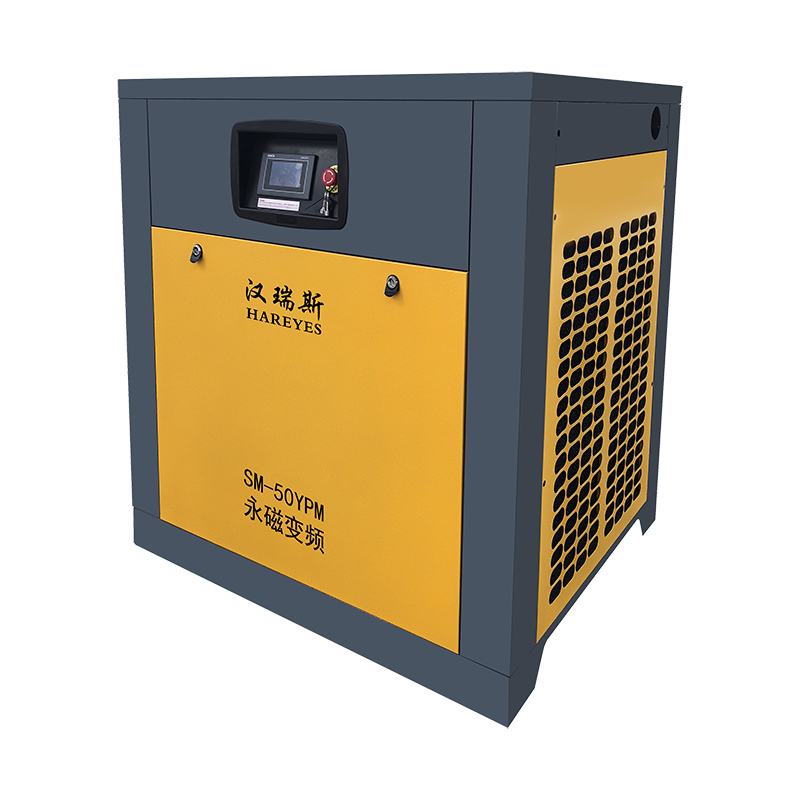

| 机 型 | SM-10YPM | SM-15YPM | SM-20YPM | SM-30YPM | SM-40YPM | SM-50YPM | SM-60YPM | SM-75PM | SM-100PM | SM-125PM | SM-150PM | SM-175PM | SM-200PM | SM-250PM | SM-300PM | SM-350PM | |
| 排气量/排气压力 （m³/min/Mpa/Bar) | 1.2/0.7/7 | 1.7/0.7/7 | 2.5/0.7/7 | 3.6/0.7/7 | 5.2/0.7/7 | 6.6/0.7/7 | 7.5/0.7/7 | 10.8/0.7/7 | 13.8/0.7/7 | 16.5/0.7/7 | 21.6/0.7/7 | 25.5/0.7/7 | 29.5/0.7/7 | 34/0.7/7 | 43/0.7/7 | 45/0.7/7 | |
| 1.1/0.8/8 | 1.6/0.8/8 | 2.35/0.8/8 | 3.5/0.8/8 | 5.1/0.8/8 | 6.3/0.8/8 | 7.3/0.8/8 | 10.1/0.8/8 | 12.7/0.8/8 | 15.9/0.8/8 | 20.2/0.8/8 | 24.1/0.8/8 | 28.5/0.8/8 | 32/0.8/8 | 42/0.8/8 | 43/0.8/8 | ||
| 0.9/1.0/10 | 1.35/1.0/10 | 2.0/1.0/10 | 3.2/1.0/10 | 4.6/1.0/10 | 5.8/1.0/10 | 6.8/1.0/10 | 8.7/1.0/10 | 11.2/1.0/10 | 14.3/1.0/10 | 18.2/1.0/10 | 21/1.0/10 | 25.5/1.0/10 | 29/1.0/10 | 36/1.0/10 | 39/1.0/10 | ||
| 0.8/1.2/12 | 1.1/1.2/12 | 1.6/1.2/12 | 2.9/1.2/12 | 4.1/1.2/12 | 5.1/1.2/12 | 6.0/1.2/12 | 7.6/1.2/12 | 10.5/1.2/12 | 13/1.2/12 | 16.8/1.2/12 | 1.9/1.2/12 | 24/1.2/12 | 26/1.2/12 | 32/1.2/12 | 36/1.2/12 | ||
| 润滑油量L | 5 | 10 | 10 | 12 | 22 | 22 | 22 | 54 | 54 | 54 | 72 | 90 | 90 | 125 | 180 | 180 | |
| 压缩等级 | 单级压缩 | ||||||||||||||||
| 噪声dB(A) | 68±2 | 70±2 | 74±2 | 77±2 | 80±2 | ||||||||||||
| 传动方式 | 直联传动 | ||||||||||||||||
| 电源 | 380V/50Hz (可根据不同电压和频率定制) | ||||||||||||||||
| 电机防护等级 | IP23 （可定制IP54） | IP54 | |||||||||||||||
| 功率（kw/HP） | 7.5/10 | 11/15 | 15/20 | 22/30 | 30/40 | 37/50 | 45/60 | 55/75 | 75/100 | 90/125 | 110/150 | 132/175 | 160/200 | 185/250 | 220/300 | 250/350 | |
| 启动方式 | 变频启动 | ||||||||||||||||
| 外型尺寸 | 长 mm | 770 | 940 | 940 | 1110 | 1082 | 1200 | 1200 | 1580 | 1700 | 1700 | 2500 | 2400 | 2900 | 2930 | 3092 | 3092 |
| 宽 mm | 690 | 770 | 770 | 890 | 850 | 1000 | 1000 | 1150 | 1250 | 1250 | 1470 | 1470 | 1800 | 1800 | 1944 | 1944 | |
| 高 mm | 890 | 1050 | 1050 | 1180 | 1180 | 1280 | 1280 | 1530 | 1580 | 1580 | 1925 | 1925 | 2200 | 2200 | 2143 | 2143 | |
| 净重 | KG | 110 | 190 | 190 | 255 | 396 | 398 | 740 | 850 | 987 | 1400 | 2200 | 2500 | 3000 | 3880 | 4050 | 4700 |
| 出口管径(inch) | G3/4" | G1" | G1-1/2" | G2" | G2-1/2" | DN80 | DN100 | ||||||||||
| 注：公司对产品不断改进，保有设计变更权，参数更改最终以机器实物为准，恕不另行通知。 | |||||||||||||||||
